Temperature Stabilized Fabry Perot Etalon for Cs spectral filtering

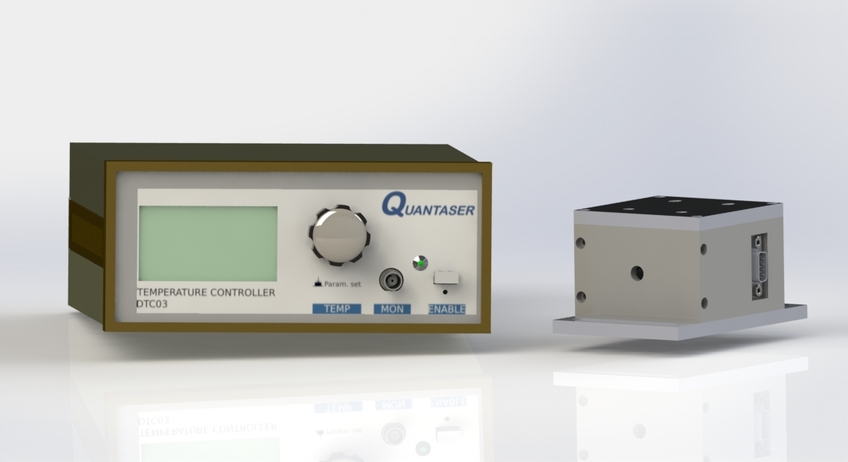

Display dtc03andetalonv3

FPE001B is a temperature-stabilized Fabry-Perot Etalon designed for spectral filtering in Cesium experiment. The extinction ratio at 9.2GHz is -38dB.The mK adjustability of the temperature controller minimizes effort in the optimization of transmission. The ultra-stable temperature design allows time-consuming, photon-counting experiment. It is a convenient tool for EIT and quantum memory experiment.

Product Features
  • Plano-convex etalon geometry
  • 38dB extinction ratio at 9.2GHz
  • > 60% transmission
  • 18W temperature controller
  • Temperature coefficient 3mK/K
  • mK resolution of temperature
  • mK adjustability of temperature
  • Temperature monitor output
Product Specification


Figure 1. The transmission profile over full free spectrum range

Figure 2. mK adjustability for the etalon temperature

Figure 3. Long term temperature stability of the etalon
